BBQ Charcoal Extruder

Home > Old >

Features of BBQ Charcoal Extruding Press: This machine is of reasonable structure and easy operation and maintenance. The briquette made by this machine features flammability, high heat value, low pollution and high density. We offer two kinds of BBQ extruder:

Small BBQ Charcoal Briquetting Machine

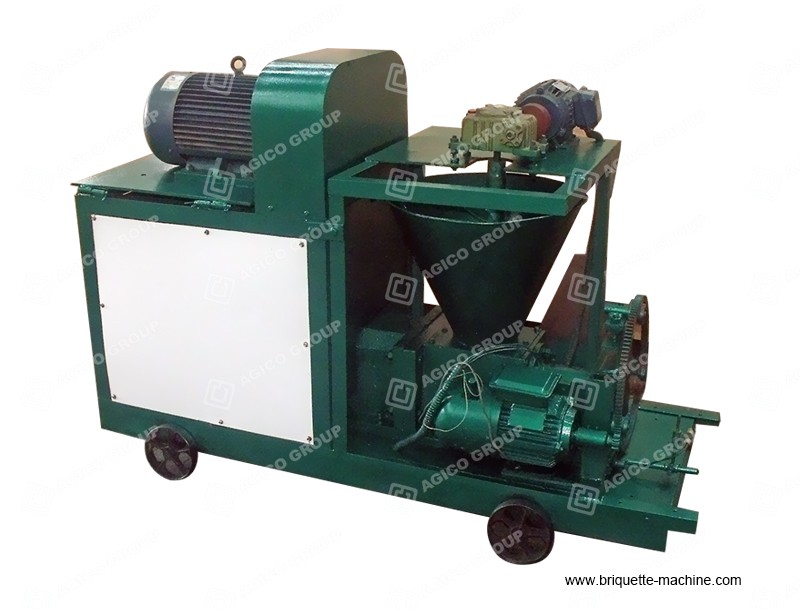

BBQ Charcoal Briquetting Machine

Model TFCX150
Output 150 kg/h (diameter 30mm)
200 kg/h (diameter 40mm)
250 kg/h (diameter 50mm)
Power 7.5 KW
(Main motor 5.5 KW + Automatic laser briquette breaker 1.1KW + force feeder 1.1KW)
Diameter of Finished BBQ Briquettes 22-65mm
Overall size 1300*800*1600mm
Packing size 1550*1310*1360mm

 Details of the Extruder:

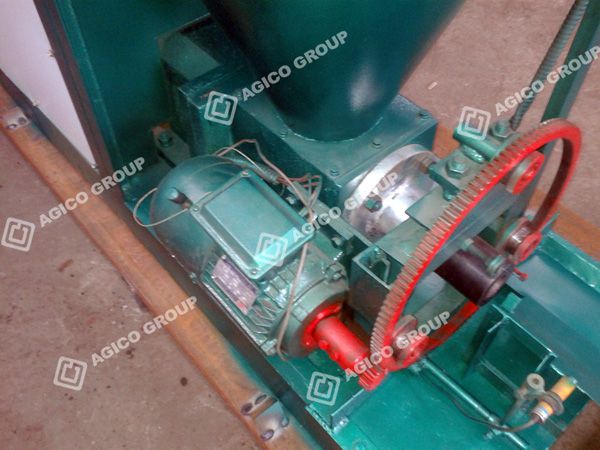

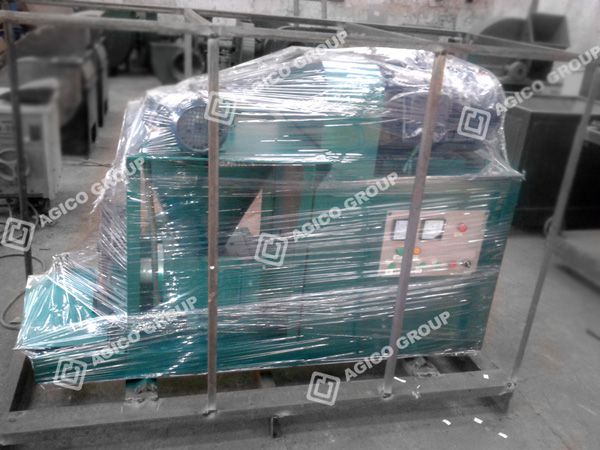

motor BBQ extruder packing

Motor Packing

Medium Charcoal Briquetting Machine

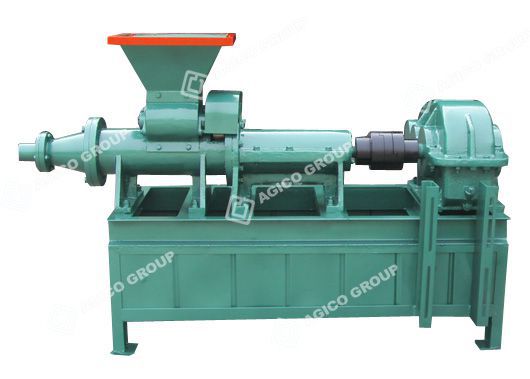

11kw bbq charcoal extruder 300 charcoal briquette extruder

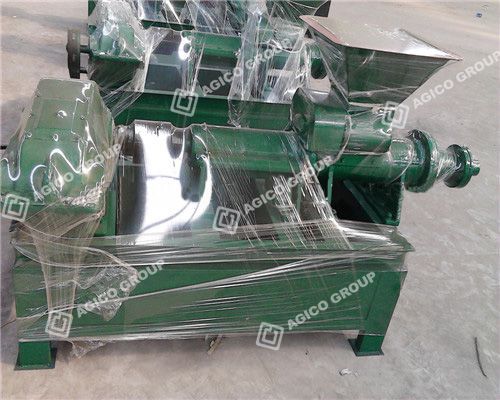

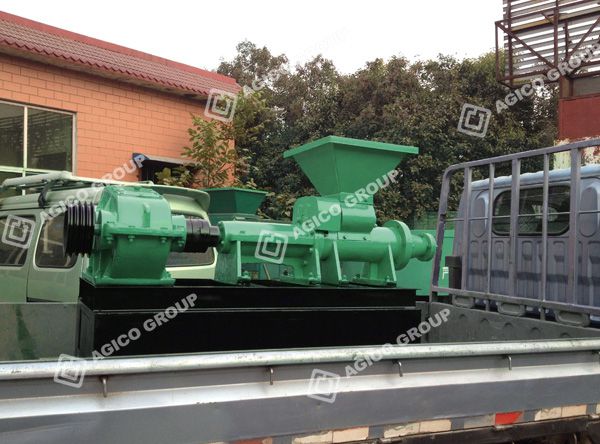

BBQ extruder shipping BBQ charcoal extruder machine packing

Model   ZZMB180 ZZMB300
Material Of Pressure Cylinder Welded-steel 45# Cast steel
Diameter Of Pressure Cylinder 185MM 300MM
Material Of Impeller Wear Resisting Cast Iron Wear Resisting Cast Iron
Material Of Nozzles Manganese Steel Manganese Steel
Diameter Of Impeller 180MM 280MM
Longth Of Impeller 520MM 640MM
Speed Of Mainshaft 135r/min 76r/min
Power 30KW 75KW
Shape Of Final Products Customized Customized
Size 2015X900X700 2850X1350X1150
Moisture Content Of Raw Material 12-14% 12-14%
Size Of Final Briquettes <3mm <3mm
Capacity 2-3T/H 5-6T/H

Large Charcoal Extruder Machine

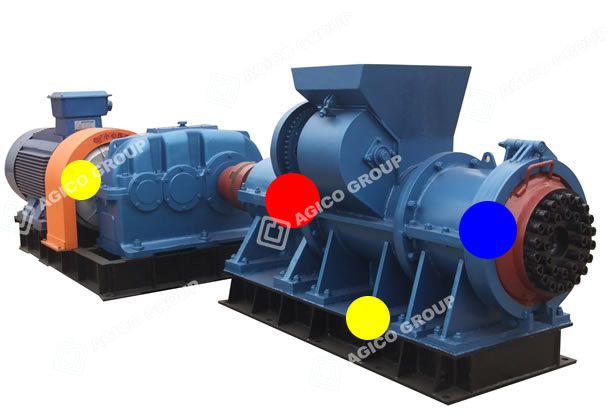

450 charcoal briquette extruder

 Model     DZZ140 DZZ160 DZZ210 DZZ300 DZZ400
Capacity 1-2T 2-3T 3-4T 3-5T 6-10T
Specification 20-40 20-60 20-80 20-80 20-80
Speed of main shaft 46-60shift/min 39-60shift/min 35-60shift/min 35-60shift/min 35-60shift/min
Helical blade quantity 4 4 4 4 4
Remarks Speed of main shaft is minimum ,could adjust higher  according to different current ,load and capacity

BBQ charcoal briquetting machine is also known as Coal Powder Briquette Machine or charcoal extruder. With varied moulds, our machines can be used to extrude charcoal stick and biomass stick of different diameters (ranging from 15mm to 65mm) in cylinder or square shape without hole. Charcoal/coal powder and charcoal dust are both appropriate materials. For some materials with poor viscosity, binder is needed in the briquetting process for better shaping.

How BBQ Briquette Extruder Works (Video)

AGICO GROUP is a professional charcoal/coal power briquette machine supplier & manufacturer in China. We can offer you the best briquetting plan depending on your specific situations and requirements. Welcome to contact us for further information!

Different Shape of Briquetting Moulds and Final Briquettes

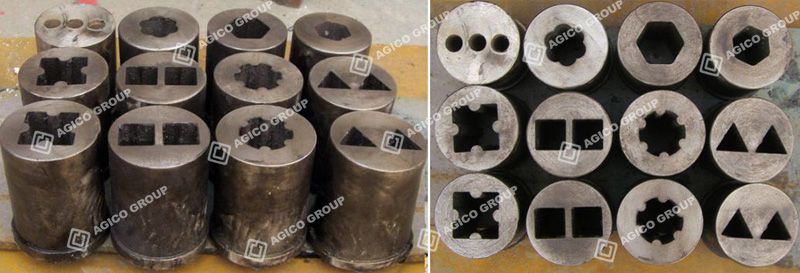

charcoal extruder mould

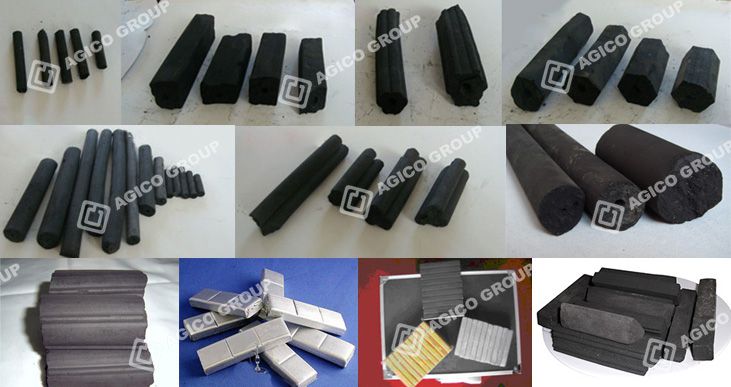

BBQ charcoal briquettes
