2 Ton /h Wood Briquetting Plant Exported to Lebanon

Home > Blog > Cases >

lebanonRecently, one of our returned customer in Lebanon ordered a 2 ton/h wood briquetting plant from ABC Machinery. He has both a set of screw briquetting machine from us last September. The main equpmens included in this project is list below.

Equipment Quantity  Power
Wood Crushing Machine (Hammer Mill) 2 18.5kw
B-type Belt Conveyer 2 1.5kw
Rotary Sieve 2 1.5kw
D-type Belt Conveyor 2 1.5kw
Dryer 2 5+2.2kw
B-type Conveyor 2 1.5kw
Screw Briquetting Machine 1 18.5kw

Goods Inspection of the Wood Briquetting Plant

The following photos are token by our quality control person.

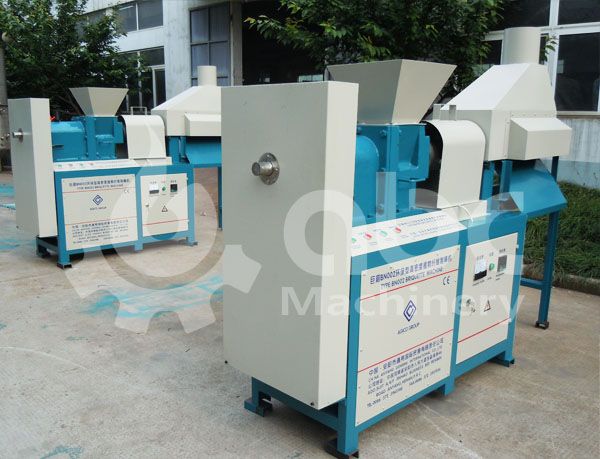

screw briquetting machine for extruding biomass and wood fuel briquettes
GCBC-II Screw Briquetting Machine Ready for Packing (Capacity: 300~350kg/h)

This 2 Ton complete wood briquetting plant costs $60,000 or so. Along with the change of equipment configuration, the final price also changes. Feel free to contact us if you are planning for starting an biofuel energy briquetting plant project! Just tell us your raw material, capacity needs and cost budget, then we can offer customized project plan and  detailed quotation.

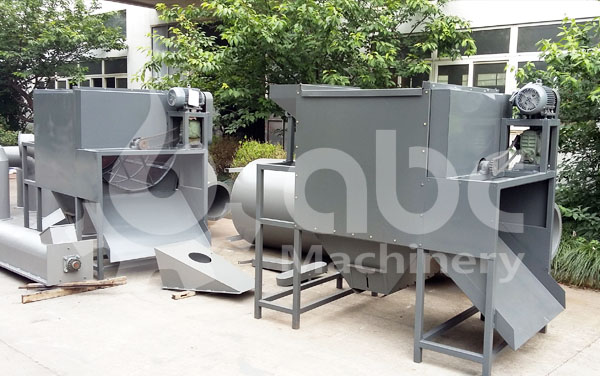

screening machine in the briquette machine plant
Screening Machine

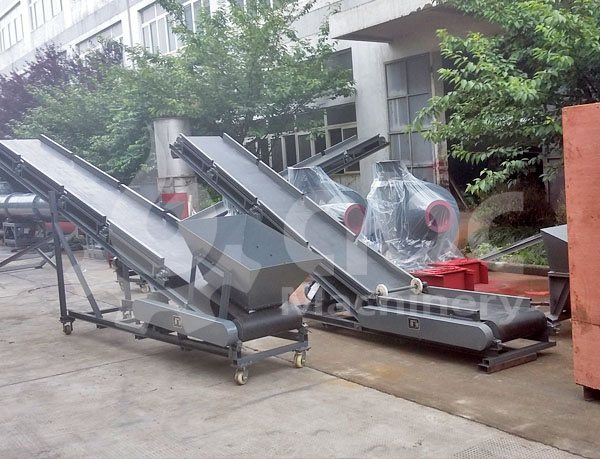

screw conveyer machine in the wood briquetting plant project
Belt Conveyer

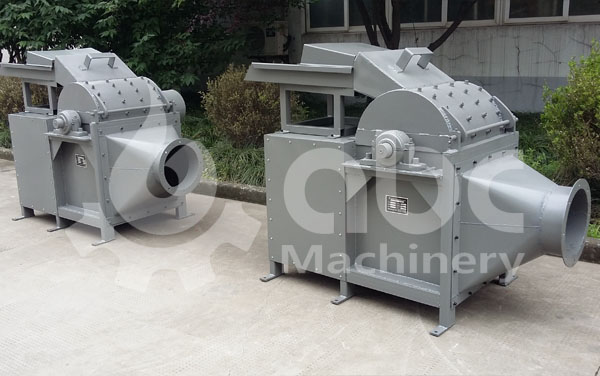

wood crushing machine for the medium scale briquette production line
Wood Crushing Machine

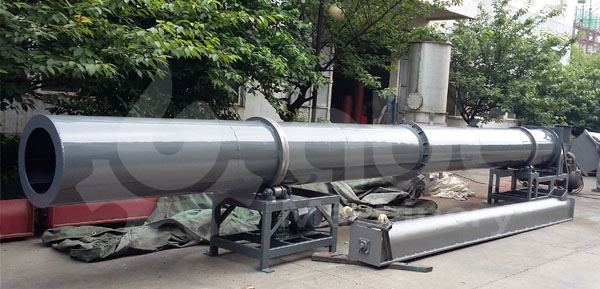

drying machinery for large briquetting production line projects
Drying Machinery

He was a complete novice when ordered the screw briquetting machine from us last year. When he tried operating the machine for the first time. He was not able to produce briquettes of quality. In fact the sawdust was even not compressed and not enough hot. So he think he is not setting the good temperature and the good pressure. So he came to us for technical support. Hope that our engineer can give good and clear advice. Our engineers discussing this matter together once received this email. With the help of the engineer, he finally make premium wood briquettes. As the briquetting effect is quite satisfy. He ordered this 2 ton per hour wood briquetting plant from us again.

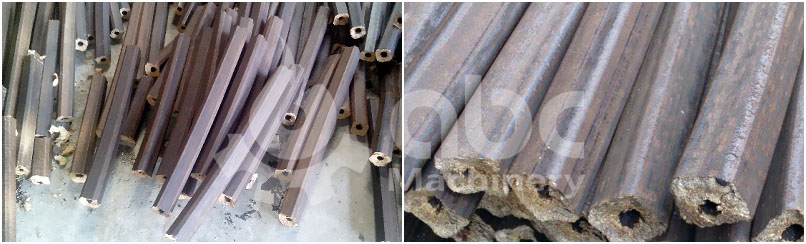

making quality biomass briquettes from wood shavings
Extruded Wood Briquettes

Contact us today to get more info about this 2 ton briquetting production line in Lebanon! We are always at your service!
