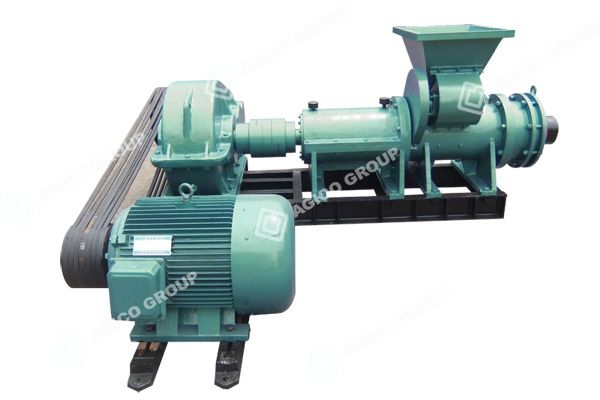

Straw Charcoal Making Machine

straw charcoal making machine
Straw Charcoal Making Machine

300 charcoal briquette extruder straw charcoal briquettes

Parameter of Straw Charcoal Making Machine

Model   ZZMB180 ZZMB300
Material Of Pressure Cylinder Welded-steel 45# Cast steel
Diameter Of Pressure Cylinder 185MM 300MM
Material Of Impeller Wear Resisting Cast Iron Wear Resisting Cast Iron
Material Of Nozzles Manganese Steel Manganese Steel
Diameter Of Impeller 180MM 280MM
Longth Of Impeller 520MM 640MM
Speed Of Mainshaft 135r/min 76r/min
Power 30KW 75KW
Shape Of Final Products Customized Customized
Size 2015X900X700 2850X1350X1150
Moisture Content Of Raw Material 12-14% 12-14%
Size Of Final Briquettes <3mm <3mm
Capacity 2-3T/H 5-6T/H

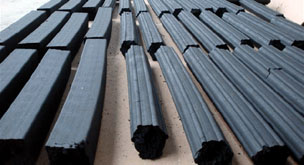

Features of Straw Charcoal Briquette

  • Straw charcoal briquettes is flammable,
  • High heat value;
  • Low cost;
  • Strong fire power;
  • Energy saving;
  • Smokeless and odorless;
  • Ideal replacement of traditoinal coal, raw coal and liquefied gas.
  • Infinite prospect;
  • The market never saturated.

The main technical indexes of straw eco-charcoal briquettes

  • Water: ≤ 12%;
  • Ash ≤ 7%;
  • Fixed carbon ≥ 75 %;
  • calorific value (mj/kg):≥26
  • Density (g/cm3) ≥ 1.1;
  • Combustion Time: about 3 hours /100 grams;
  • Appearance: hexagon (diameter ≤ 4.5cm) with hole through center. The length of each briquette is about 10cm.
