Sawdust Briquette Making Machine

How to make biomass & wood materials to charcoal briquettes?

  • STEP 01. Turn biomass materials to biomass stick briquettes (surface charred briquettes).
  • STEP 02. Carbonize the semi-carbonized briquettes to fuelly charcoal briquettes.

This briquette machine is designed for making hexagon shape wood briquettes or charcoal briquettes with a hole in the center, allowing air flow through when burning, ensuring higher burning efficiency. Some people may also call it wood charcoal machine or charcoal making machine.

>> How to build a complete biomass to charcoal briquette plant?

  • Hexagon shape wood briquettes or charcoal briquettes with a hole in the center, allowing air flow through when burning, ensuring higher burning efficiency.

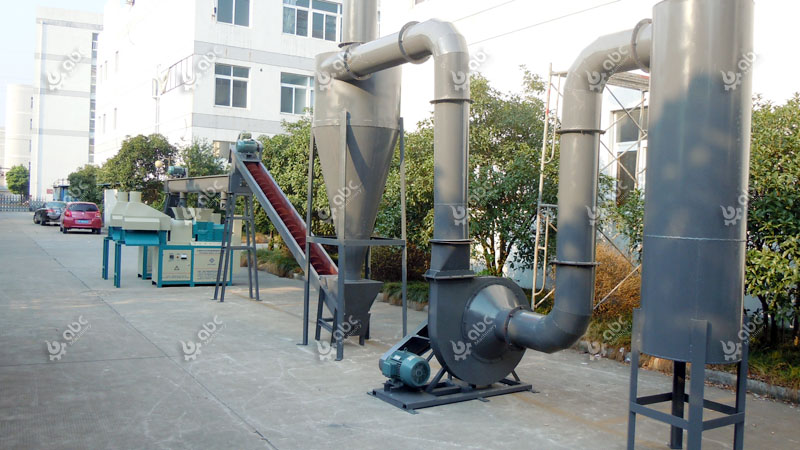

  • A complete screw briquetting plant enables you to make either wood briquettes or charcoal briquettes at your choice
  • Extremely low briquetting cost compared with other type of briquetting machine, meaning that you will make a high capacity by connecting a couple of screw press briquetting machines at ease
  • - See more at: http://www.biofuelmachines.com/Screw-Press-Briquetting-Machine.html#sthash.ksAi95lD.dpuf
  • Hexagon shape wood briquettes or charcoal briquettes with a hole in the center, allowing air flow through when burning, ensuring higher burning efficiency.
  • A complete screw briquetting plant enables you to make either wood briquettes or charcoal briquettes at your choice
  • Extremely low briquetting cost compared with other type of briquetting machine, meaning that you will make a high capacity by connecting a couple of screw press briquetting machines at ease
  • - See more at: http://www.biofuelmachines.com/Screw-Press-Briquetting-Machine.html#sthash.ksAi95lD.dpuf
  • Hexagon shape wood briquettes or charcoal briquettes with a hole in the center, allowing air flow through when burning, ensuring higher burning efficiency.
  • A complete screw briquetting plant enables you to make either wood briquettes or charcoal briquettes at your choice
  • Extremely low briquetting cost compared with other type of briquetting machine, meaning that you will make a high capacity by connecting a couple of screw press briquetting machines at ease
  • - See more at: http://www.biofuelmachines.com/Screw-Press-Briquetting-Machine.html#sthash.ksAi95lD.dpuf

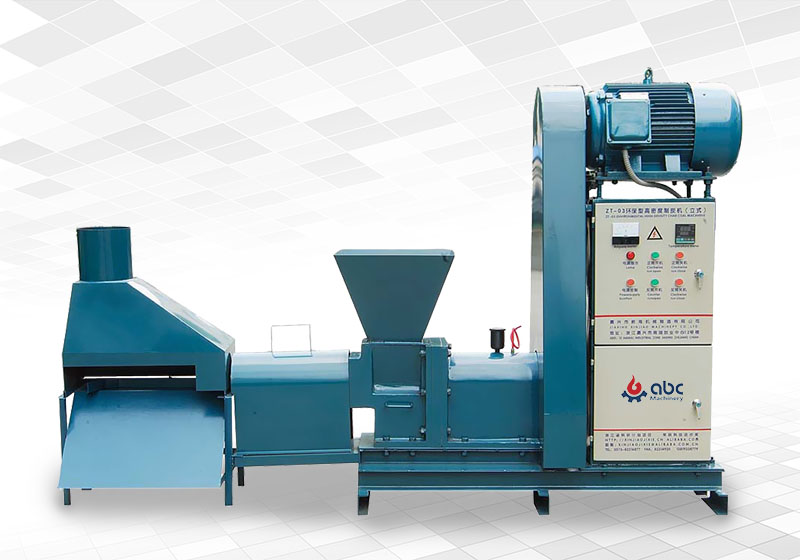

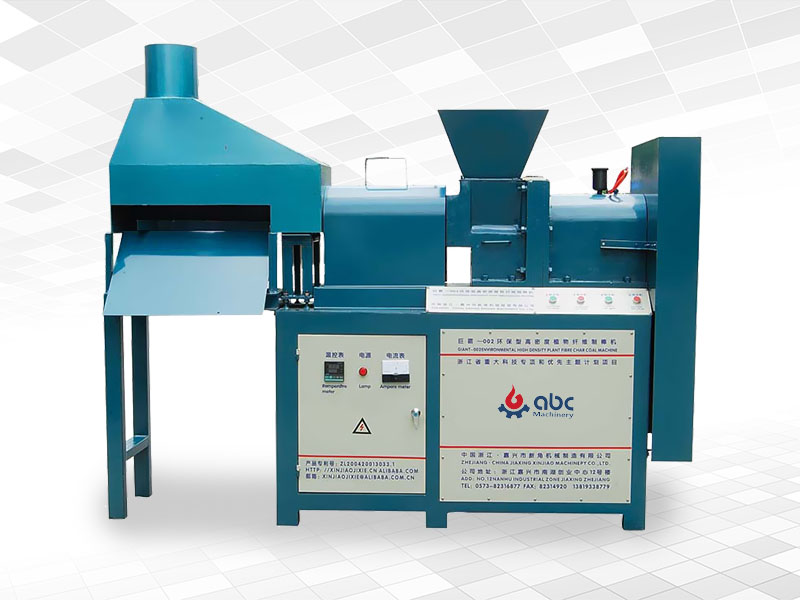

Screw Briquetting Machine - GCBC Series

GCBC series briquetting machine is screw type design. GCBC Series briquette making machine is a kind of high-end briquetting equipment. It is improved in both appearance design and structure design based on 6 years of research and manufacturing experience. Do not need to change Inner Former until input capacity exceed 1000 tons.

Raw Materials: sawdust, wood branches, wood residues, biomass wastes...

Model GCBC- I GCBC-II
Output capacity kg/h 180-210 300-350
Motor Power (kw) 15kw 18.5kw
Electric heater (kw) 2.2kw*2
Life of the inner former 1-2years
Size of briquettes Dia.50mm*L.480mm Dia.60mm*L.500mm
Size of inside hole Dia.16mm
Density of briquettes 1.3 g/cm3
Weight(kg) 700kg 1000kg
Overall dimension(mm) 2700*600*1600 mm 2000*600*1700 mm

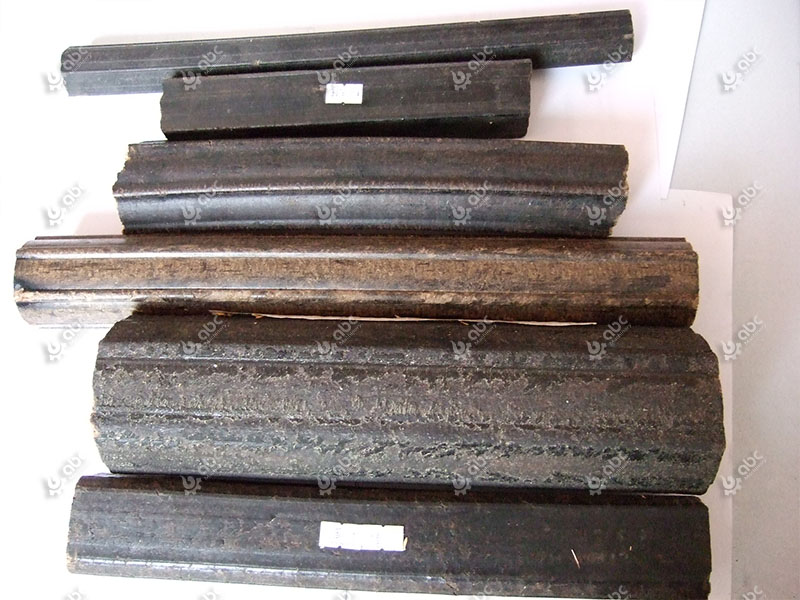

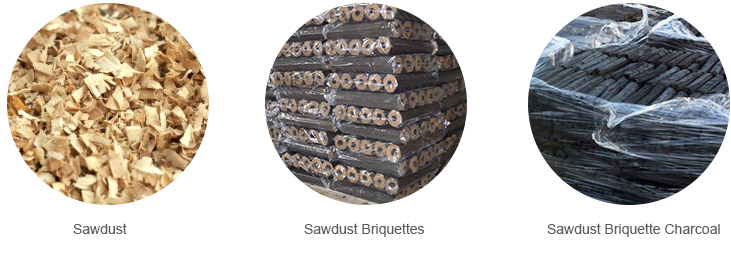

Final Wood Charcoal Briquettes:

The shape of the biomass briquettes or charcoal briquettes can be customized by changing different forming parts. Feel free to tell us your specific needs if you want to make wood briquettes in other shapes.

briquetting moulds

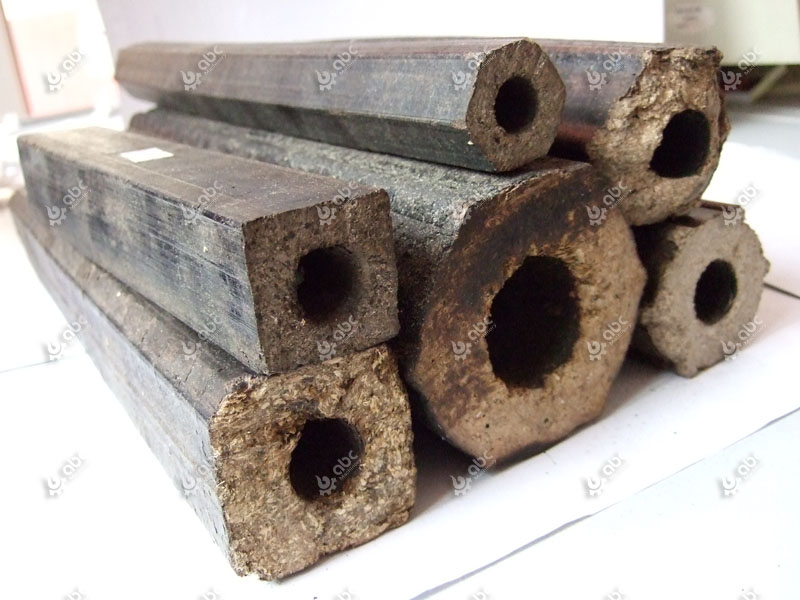

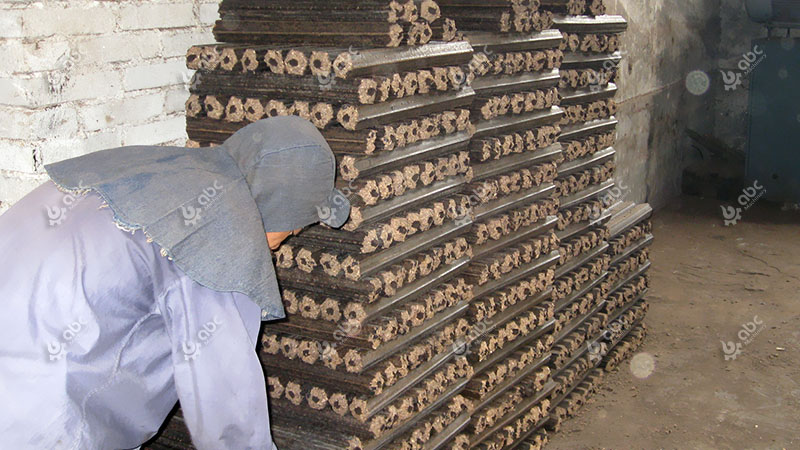

wood briquettes

Our Briquetting Press is in screw type, it produces cylindrical briquettes with a hole through the centre of the cylinder. The briquettes produced by a screw press is easily handled and stacked, and they have some advantages over those produced using the ram and die press. While the briquettes produced by a piston press are completely solid, screw press briquettes on the other hand have a concentric hole which gives better combustion characteristics due to a larger specific area. The screw press briquettes are also homogeneous and do not disintegrate easily. Having a high combustion rate, these can substitute for coal in most applications and in boilers.

making charcoal briquettes

Our wood charcoal briquette machine have automatic temperature control system, it is designed to produce high density wood or charcoal briquette as biofuel.

Features of GCBC Series Briquette Making Machine:

  • Long Life of Screw Shaft
    Long Life of Screw ShaftOur machine adopts a durable material (high hardness alloy steel) to make the shaft. We use a different process then what is normally used to make the screw shaft. The screw shaft is manufactured with a milling machine which guarantees that the distance between every screw is the same, and the angle of every screw is the same.

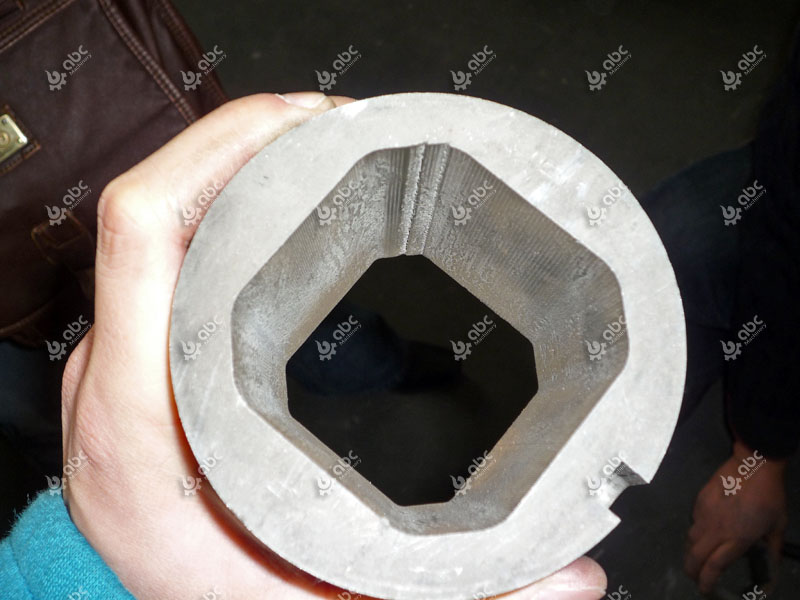

  • Long Life of Inner Former
    Long Life of Inner FormerThe Inner Former can be used for 1-2 years.The former is made from a whole steel bar through a water jet cutting system so that the inner face is smooth. Therefore, it’ll be easier to form and save energy. This is why the finished produces such as sawdust briquettes are smooth. It consists of two parts and you need to change only the key part when it is worn.


  • Briquette Making Mahcine Heating sectionHeating section - we adopted two heat collars which are made from thick copper wires and are ceramic inside.

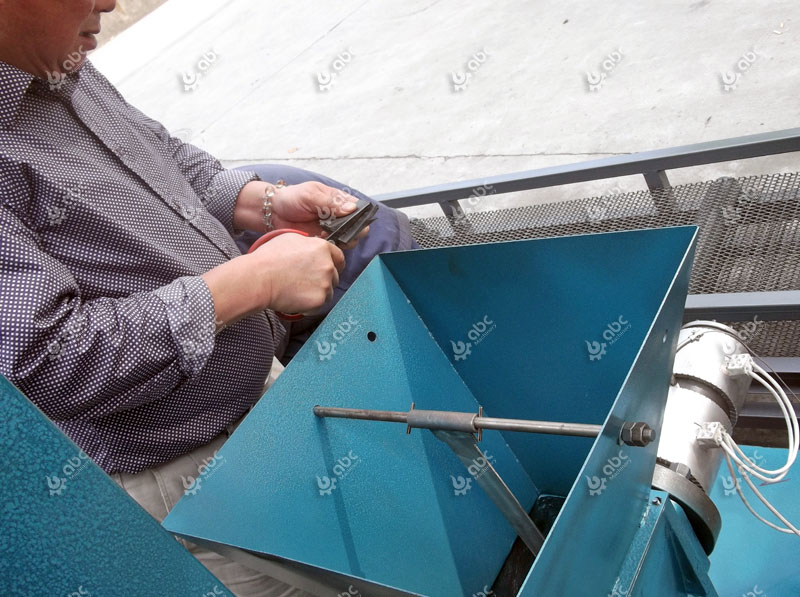

  • An attractive feature on the forming hopper is that we added a movable plate on the bottom. It has two functions, one is you can clean it easily. The other is that you can discharge the inputted material when it is jammed.
  • Lubricating System
    Briquette Making Machine Lubricating SystemThe gear box is equipped with lubricating system. Moreover, to oil the gear box properly, our briquette machine is designed with an exhaust function which can help maintain consistent air pressure.
  • Auto Cutting System
    Briquette Making Mahcine Auto-Cutting SystemIt’s a simple piece of equipment composed of two steel plates. (Please see the picture), and briquettes can be automatically cut in uniformed lengths.

Working principle:

Briquetting is a process that biomass is compressed under high pressure and high temperature. The machine uses a large screw to grind the biomass into briquettes that are of uniform composition.
The self bonding of biomass to form a briquette involves the thermo-plastic flow of the biomass. The lignin content that occurs naturally in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thus binding,compressing the biomss to form into high density briquettes. During this process, no binder need to be used. So the ouput briquette is a type of clean and green fuel that is ideal for use in furnaces, boilers and open fires. The density of the briquettes is 1300kg/CBM.

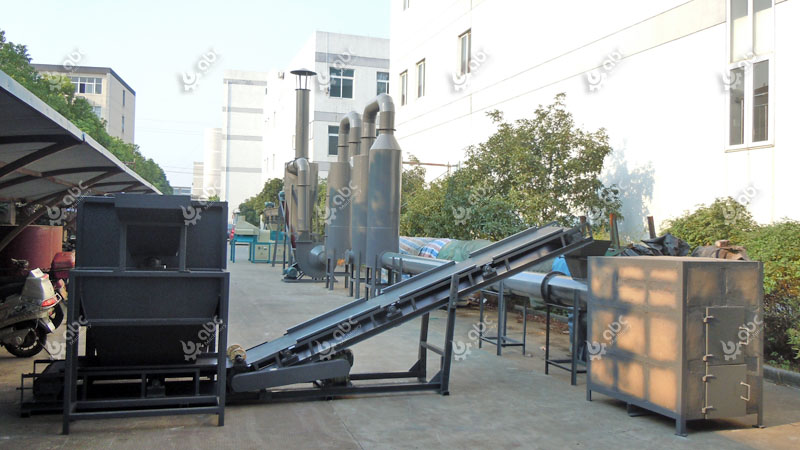

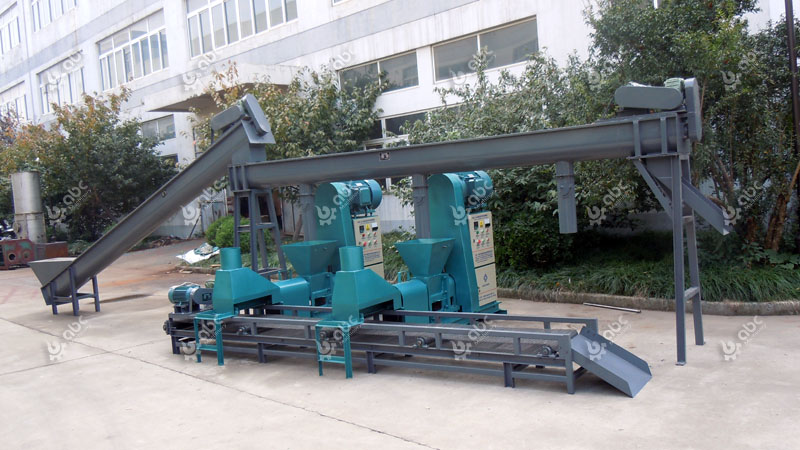

Our Biomass Briquetting Projects

biomass brqiuette plant
biomass brqiuette project
biomass brqiuette plant
biomass brqiuette plant
biomass brqiuette project

Biruqette Plant Design

  • I am interested in your sawdust briquetting machine. The raw material is sawdust from wood working machinery. We would like to have the medium machine that can perform 500-1000kg of sawdust per day.
  • Please find our offer as attachment in email, please check it, hope it can meet your needs.
  • I wonder if hemp herds could be used in this machine to make logs for home heating Kent fireplaces?
    What diameter logs could be made? What price would machine cost delivered to central North Island, New Zealand.
  • Yes, please find our offer as attachment in email, please check it. The diameter of briquette is 50mm.
    The sea freight to Auckland is around USD105 for this machine, please check and confirm.
  • I would like a briquette making machine quote for diameter of 100mm briquette and shipping to Auckland.
  • Sorry, Model GCBC-I only can make max dia. is 50mm, we have a bigger machine, the max. dia. also only can reach 70mm, please check and comment.
    FYI we think dia. 100mm is too big, it is not convenient and good for burning.
