Hammer Mill

Hammer Mill is suitable for milling raw material like tree branch, tree trimmings, cotton stalk, corn stalk, wheat straw etc) with size less than 30mm(diameter). After milled, the output size can reach diameter 3-5mm , which is suitable for further briquetting.

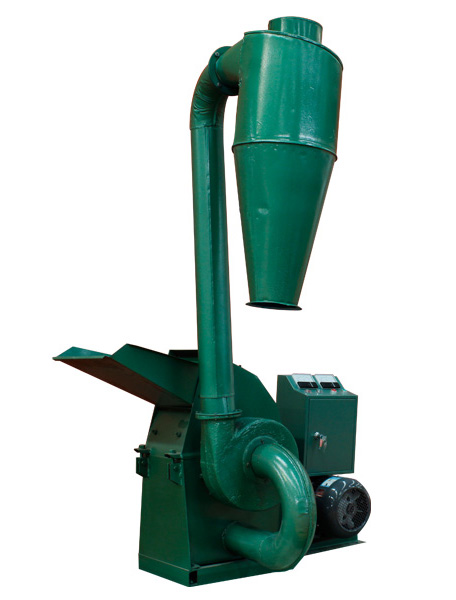

hammer mill electric motor
Hammer Mill with Electric Motor

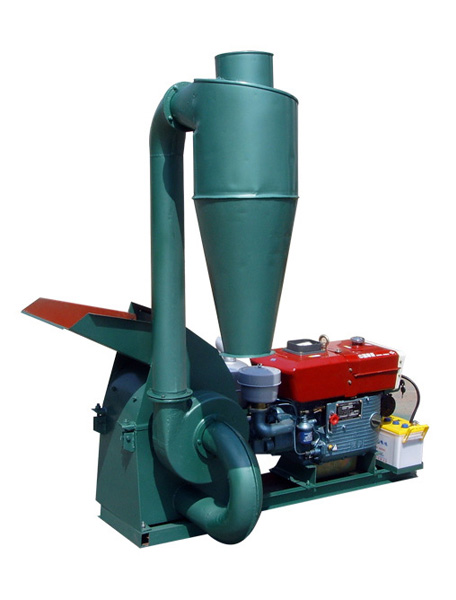

hammer mill diesel engine
Hammer mill with Diesel Engine


Model GC-FSC Hammer Mill with Electric Motor Hammer mill with Diesel Engine
Application Suitable to process wood chip / tree trimmings/ wheat straw  / plant stalk etc.
Capacity (kg/h) 500-700 500-700
Moisture of Feeding Material Moisture max 20- 25% Moisture max 20- 25%
Size of Feeding Material Max. diameter 30mm
Max. length 300mm for wood materials
Final Size After Milling Ø5×5mm
Gross/Net Weight 750/800kg
Power 18.5kw 22 HP
Overall Dimension (mm) 1700*1150*1200
Cyclone (2400*800*800)

Materials after Processed

hogged wood scrap
Hogged Wood Scrap

planer shavings
Planer Shavings

Black Cohosh
Black Cohosh

alfalfa
Alfalfa

Corn
Corn

Nettle
Nettle

Rye
Rye

Dry Wood Chips
Dry Wood Chips

Green Wood Chips
Green Wood Chips
