Dryer

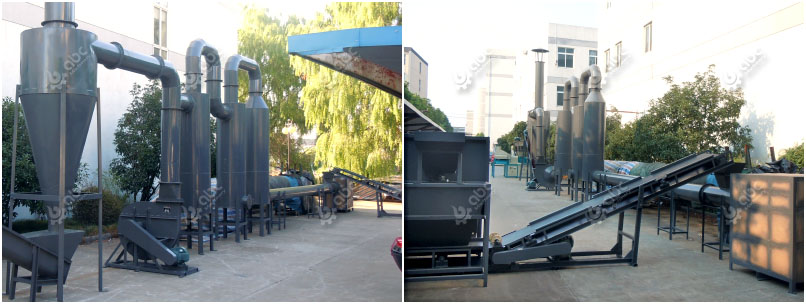

Air Flow Drier

Now, we made the improvement that all the drier has Fire-reisistant Paint and thickness plate.

Fire-reisistant Paint and thickness plate

Dryer Machine for Lower Moisture Content 12-25%

Dryer Model GC-QL-I

With a moisture reducing rate of 8-12%, the dryer is equipped with a hot air boiler, which is suitable for drying raw materials with moisture content less than 20-25%.

Raw materials need to be dried if their moisture content is higher than mentioned above, and two or three time of dry up is necessary to achieve the demanded moisture content for wood briquette maker.


Model GC-DL-4 GC-DL-5.5 GC-DL-7.5
Capacity(Kg/hour) 200-250KG 400-500KG 500-700KG
Size of Input Material
(Diameter)
< 3mm & < 5mm < 3mm & < 5mm < 3mm & < 5mm
Temperature of Hot Air 120°C~150°C 120°C~150°C 120°C~150°C
Consumption of Wood Waste 15-20 kg/h 25-30kg/h 30-35kg/h
Power
(Centrifugal Fan)
4kw 5.5kw 7.5kw
Net/Gross Weight 700/800kg 1200/1300kg 1800/1900kg
Dimension(m) 6×2×3.65m 9×2×3.65m 11×2×3.65m

dryer model GC-DH Dryer Model GC-DH Series for Higher Moisture Content 30-40%

Because of this drying system with boiling pots, so materials of 40% moisture can be dried (one time) to meet the need of briquette plant (moisture is about 10%). Compared with other dryer (need to dry 2-3 times), the new type dryer reduces the labour intensity.

Model GC-DH-7.5 GC-DH-11 GC-DH-15 GC-DH-18.5
Capacity(Kg/hour) 350-500 600-800 800-1000 1000-1200
Size of Input Material
(Diameter)
< 3mm & < 5mm < 3mm & < 5mm < 3mm & < 5mm < 3mm & < 5mm
Temperature of Hot Air 150°C~200°C 150°C~200°C 150°C~200°C 150°C~200°C
Consumption of Wood Waste 70kg/h 100kg/h 120kg/h 150kg/h
Moister content max % 30-40% 30-40% 30-40% 30-40%
Moisture of material after drying 8-12% 8-12% 8-12% 8-12%
Power
(Air Fan)
7.5kw 11kw 15kw 18.5kw
Net Weight 2500kg 3100kg 3800kg 4500kg
Overall dimension (m)
(L*W*H)
23*3.5*3.5 25*3.5*3.5 29*4*4.3 32*4*4.3
Packing size Nude Packing

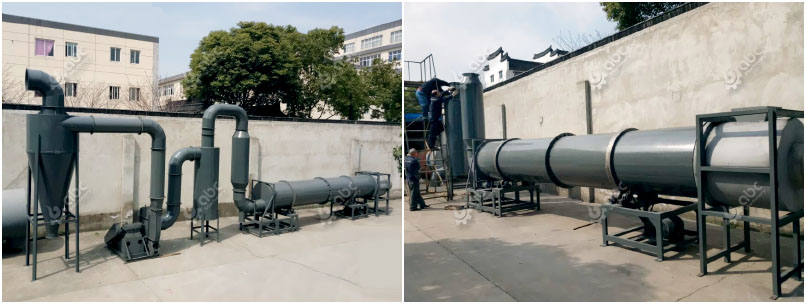

Rotary Drier

Single Layer Energy Saving Rotary Drier

Rotary dryer

Our rotary dryer is mainly made up of a rotary body, raw material feeding plate, driving and supporting device, etc.
It is suitable for drying materials of moisture 30-50%, like sawdust, rice hull, milled wheat straw, corn stalks and so on. It takes the advantages of low cost consumption and high efficiency, reducing the moisture to 8-12%.
Raw materials are fed into the rotary cylinder through the raw material feeding plate which is arranged reasonably with changeable angles. Hot air-flow is then used to generate hot air to evaporate humidity of raw materials in order to dry them. The water is changed into vapor and discharged into the atmosphere.

Technical parameter:

Model GC-MXΦ1.6×11
Output Capacity(Kg/hour) 1000-1200KG
Size of Input Material(Diameter) < 3mm & < 5mm
Temperature of Hot Air 50°C~80°C
Moisture of raw material 40%~50%
Consumption of Wood Waste 80 kg/h
Total Power 31.2 kw
Size of rotary Diameter 1600mm *L 11000mm
Net Weight 22351 kg
Loading in container 1* 40’GP

Three Layer Energy Saving Rotor Drum Dryer

Three layer energy saving rotor drum dryer
Rotor Drum Dryer

This Three layer energy saving rotor drum dryer is suitable for drying the sawdust form the moisture 50% to 12-15% for making pellet or briquette. This drier is for industrial purpose. For three layers designing is based on saving the energy cause of the hot air can be used by circle. Also, prevent the bright fire in processing. So, the capacity for this machine is above 2TPH. The biggest one we made is 5TPH.
