Coal / Charcoal Briquette Machine

AGICO supply three kinds of Roller Press Briquette Machine:

Minimum Coal / Charcoal / Coke Briquette Maker

Structure: Two rollers single press

Advantage: Low cost machine, which is suitable for individual, homeuse or small scale coal briquetting production.

minimum coal briquette maker
minimum coal briquette press

Model GCXM-1
Power 5.5kw
Producing capacity 1-2TPH
Diameter of roller 290mm
Width of roller 200mm
Form of structure Two rollers single press
Overall size 1200×1000×1420
Weight 560kg

Mechanical Coal / Charcoal / Coke Briquette Machine

Structure:

  • Four-roller double-pressing type
  • Mechanical structure

Advantage: The four rollers apply twice pressure to the briquettes being pressed. So the briquettes made by this coal briquette machine are stronger with high density and the surface is smoother. This briqueting press machine has national patent in China.

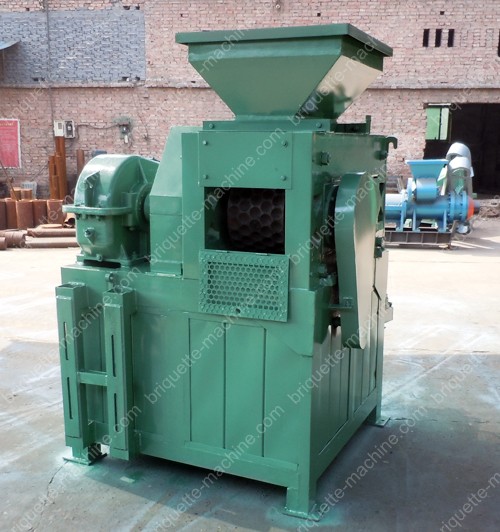

mechanical briquette maker

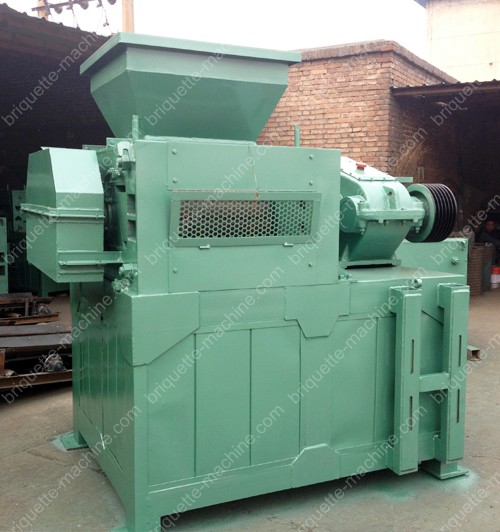

mechanical charcoal briquette maker

Model capacity Power(kw) Speed of main shaft Type of pressure Material of roller Form of structure
GCXM-4 4TPH 7.5-15 18r/min Mechanical 65Mn Four roller double press
GCXM-6 6TPH 11-18.5 15r/min Mechanical 65Mn Four roller double press
GCXM-8 8TPH 15-22 15r/min Mechanical 65Mn 9cr2Mn Four roller double press

Hydraulic Coal / Charcoal / Coke Briquette Machine

Structure:

  • Four-roller double-pressing type
  • Hydraulic structure

Advantage:

  • These four rollers apply pressure twice to the coal and charcoal materials, making the final briquettes stronger with high density, and the surface is smoother. AGICO briquette machinery are qualified and reliable. All our machines own national patent.
  • Mechanical and HydraulicIt structure: when there is problem in the hydraulic system, you can use mechanical type when maintain it. It does not influence the machine's working.

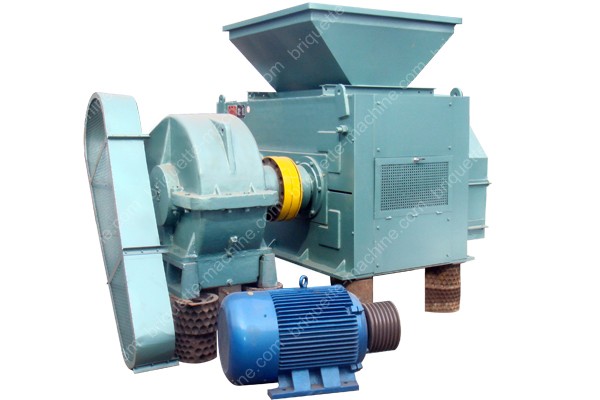

hydraulic charcoal briquette machine
hydraulic charcoal briquette machine

Model capacity Power(kw) Speed of main shaft Type of pressure Material of roller Form of structure
GCXM-10 10TPH 18.5-30 13r/min Mechanical & Hydraulic 65Mn/9cr2Mn Four roller double press
GCXM-15 15TPH 30-45 13r/min Mechanical & Hydraulic 65Mn/9cr2Mn Four roller double press
GCXM-20 20TPH 55-75 13r/min Mechanical & Hydraulic 65Mn/9cr2Mn Four roller double press
GCXM-30 30TPH 75-90 10r/min Mechanical & Hydraulic 65Mn/9cr2Mn Four roller double press

What is Roll Press Briquette Machine / Maker?

Charcoal Briquette Machine Rollers

Roll press briquette maker have been used to increase the particle size of and bulk densities of materials to improve their handling. In a roll press briquette maker, material is densified by compression between two main counter-rotating rolls. The roll surfaces have pockets to form briquettes of desired size and shape when the material passes between the rolls. This double pressing briquette press supplied by AGICO GROUP has obtained national patent in China.

Appropriate Raw Materials

  • Charcoal powder / charcoal dust: raw material powder, silicomanganese alloy, etc.
  • Coal: Coal powder, middle coal, slime peat, coke powder, lignite etc.
  • Other material: fireproof material, desulfurization gypsum, dolomite etc.
The materials size and moisture requests before briquetting: In order to ensure the good quality and mechanical strength of the final product, special care should be taken to ensure that the granule size fed to the machine is maintained below 3mm, preferably in the range of 30-40% smaller than 1–2 mm, with no more than 10% over 2 mm.

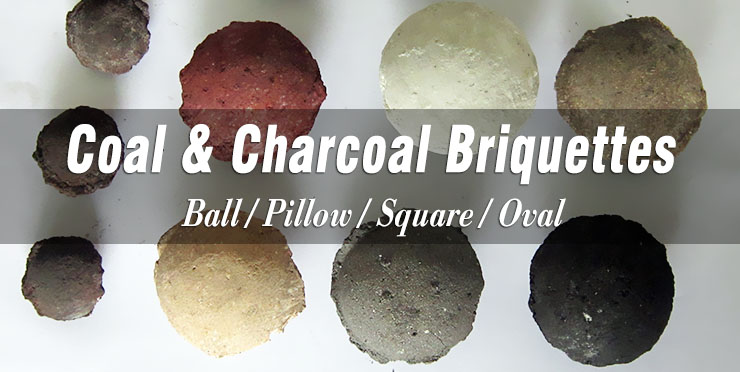

Final Briquettes

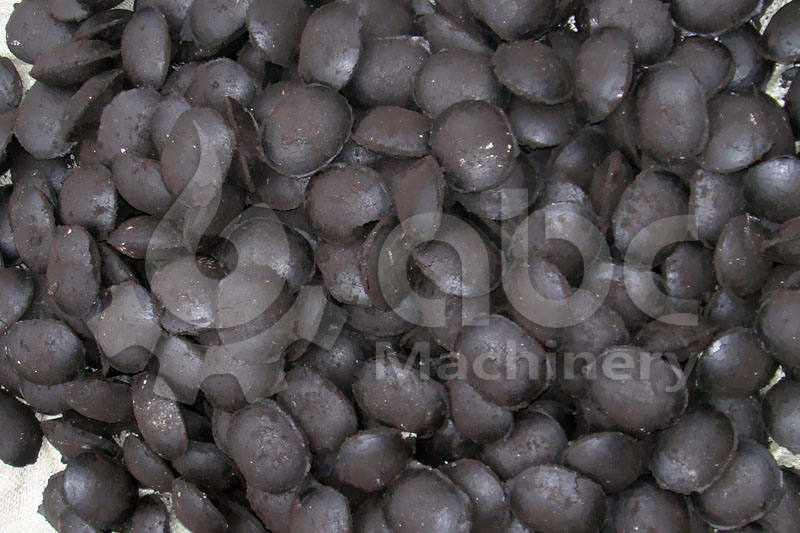

Charcoal Briquette

Shape: Can be round, pillow, oval.
Size: Changeable size 18mm-80mm, made according to clients requests.

Diagram of External Size

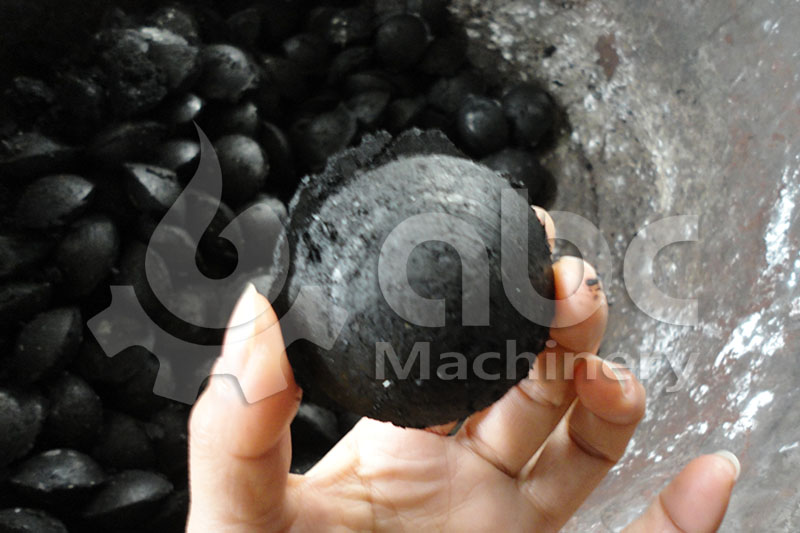

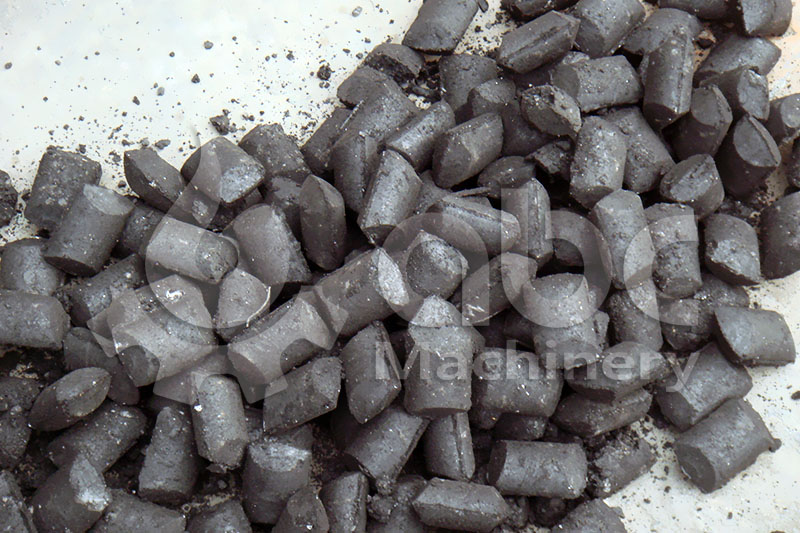

Coal Briquettes Coal Dust Briquettes

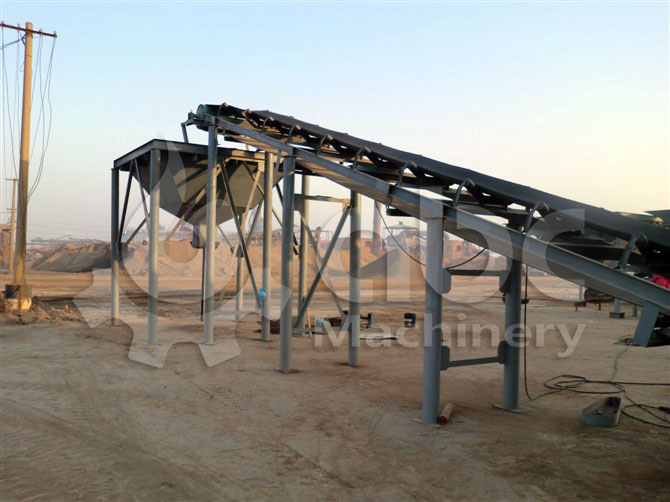

Coal / Charcoal Briquetting Projects

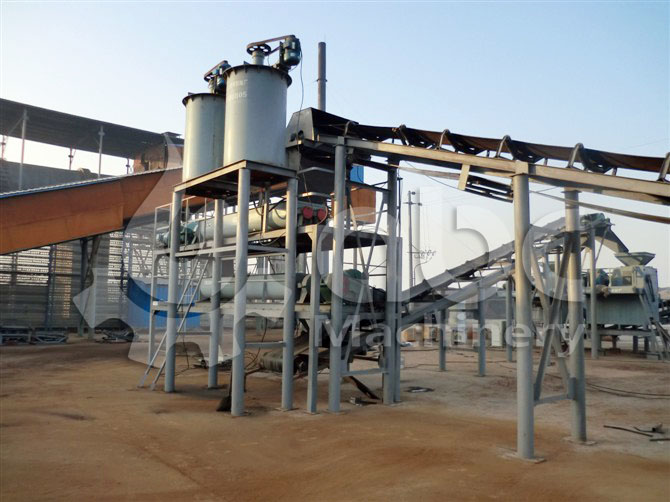

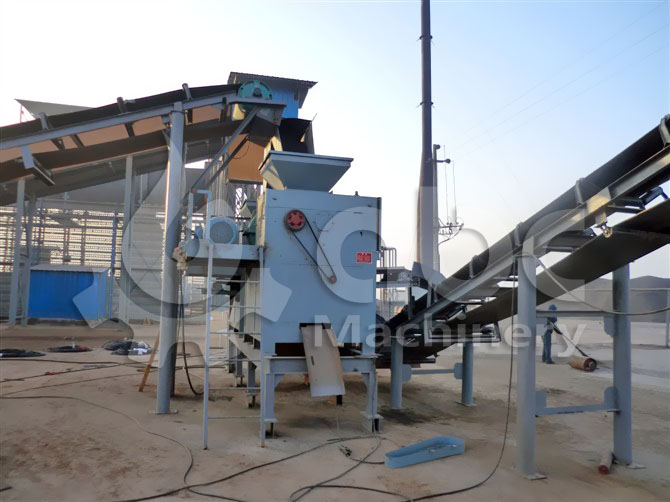

Charcoal Briquette Plant

With the purpose of ensuring the final product’s quality and mechanical strength, special treatment should be taken to ensure that the granule size fed to the machine is smaller than 3mm, the perfect size is smaller than 1–2 mm in the range of 30-40%, with no more than 10% over 2 mm. The moisture content of the mixture also can affect the quality of the final product, and it should be kept in the range of 8-10%.

ABC Machinery is a Chinese coal / charcoal briquette maker supplier with professional technical team. Have any questions about briquetting or want to know more about our machines? Contact us now!

  • Briquette size is OVAL SHAPE 20X20X16mm OR 16X16X10mm  . This briquette will be used in Hot air chain stove where coal size requirement is 6mm to 20mm. Any shape will do. Binder material is from coal gasifier waste Tar oil. Please suggest the best type and size.
  • You said that the briqutte going to the stove should be about 6-20mm. Can you accept bigger size briqutte? You see, the capacity of GCXM-4 is 4t/h is based on the briquette size of 50*30mm. If the briquette size is 20*12mm, the capacity of the machine is only 2-3t/h or so. You see, if the briquette size is bigger, eg 50*30mm, the capacity/output of the machine will be accordingly higher. Or perhaps you can try our GCXM-6 briquette machine. The capacity of this GCXM-6 machine is higher and around 3-4t/h.

    We would like to know your kind opinion. Thanks so much.

    Tar oil can be treated as binder. It's ok.
  • My company want to buy briquette press, so please give me a offer for your machine GCXM-8 for briquetting coal dust. We need capacity of 8t/h, so I think this model is good for us.

    Thank you in advance and best regards.
  • Thanks for your attention on our products.  Please find our offer as email attachment, please check it,hope it is ok to you.

    Please don't hesitate to email me if you have any problem.
  • We understand the 4 roller machine. So what is the diameter of these rollers.
  • The diameter of the big roller is 450mm. And the diameter of the small roller is 140mm.
  • RPM of Roller to get achieve the capacity mentioned by you.
  • The speed of the main shaft is 15rpm.
  • We are in the final stage to decide for one Carbon Briquetting Machine from China.
  • Please check the details of our briquette machine in the email attachment.
