GCBC-IIA Briquette Machine

Our Machine Is Capable of Briquetting Any Biomass Wastes

What is biomass? Biomass refers to all organic materials made from animals and plants, such as straw, grain stalk, sawdust, rice husk...

make fuel briquettes

Examples of biomass materials:

★ Wood Wastes: construction & demolition material, medium density fiber board (mdf), sawdust and sanding dust, bark, shavings, cut-offs , pulp & paper waste…
Agricultural Residues: switchgrass, grape, olive & fruit pomace, oat hulls, coffee bean hulls, nut shells, skins and hulls, corn husk & cobs, wheat mids, bagasse…

Animal & Municipal Wastes: bedding, manure, litter, wood crates & pallets, paper/cardboard
Pulp…

GCBC-IIA Biomass Briquette Making Machine for Sale

wood briquette making machine

GCBC-IIA High Density Briquettes Making Machine

Scew Rod and Sleeve
Scew Rod and Sleeve

Scew Rod and Measuring Ring
Scew Rod and Measuring Ring

Model GCBC-IIA
Output capacity kg/h 200-250
Motor Power (kw) 18.5kw, 360v, 6 grades
Electric heater (kw) 2.2kw×2
Heating Range 280~350℃
Life of the inner former 1-2years
Size of briquettes 50*50*480mm
Size of inside hole Dia.16mm
Density of briquettes 1.3T/m³
Weight(kg) 0.7T
Overall dimension(mm) L2.7*W0.6*H1.6 M
Raw material moisture requirements 8~10%

GCBC-IIA biomass briquette machine is new developed briquette making machine. It is specially designed for these who are interested in GCBC-I's cheap price, but want higher output. As you can see, this type of screw briquette machine looks like GCBC-I, but it is greatly improved in the structure design and the capacity is increased by 250kg/h. Feel free contact us to get more details of the machine.

How to Make Rice Husk Briquettes?

rice husk briquettesFirst of all, let’s see if rice husk briquettes are easy to cause fire in the process of storage, and threat to safety production. Through tests, we found that the lighting time of rice husk pellets and briquettes is above 85s, similar to most wood materials. That is to say, the thermal stability of rice husk pellets and briquettes is in safe range.

A complete rice husk briquetting process includes crushing, drying, mixing, delivery, briquetting, cooling, testing and packaging.

briquetting process

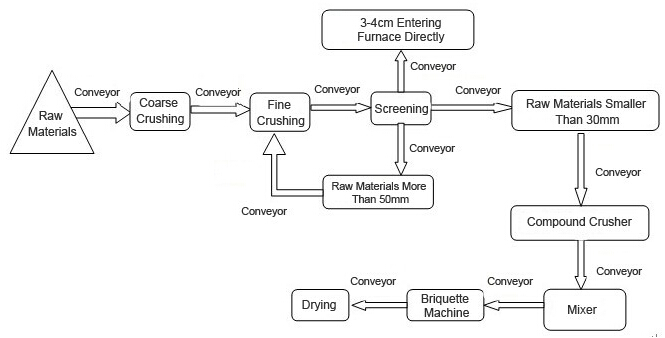

Briquetting Process Flow Chart

Successful Briquette Making Plant Projects

Briquetting Plant Projects

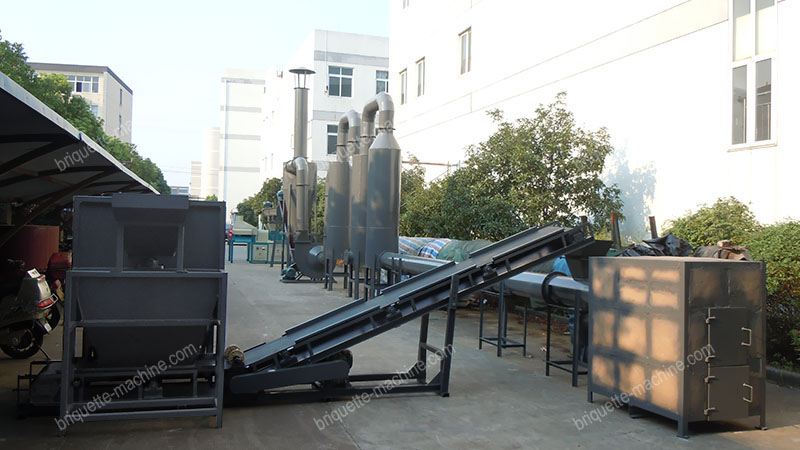

Rice Husk Briquette Making Plant

  • We like to find a suitable Briquetting Machine to convert plant waste fibre into solid fuel briquets of 200mm and thickness of 30 mm.  Thank you.
  • Our offer as attachment, please check it. Hope it can meet your needs. Don't hesitate to email me if you have any problem.
