Log Splitter

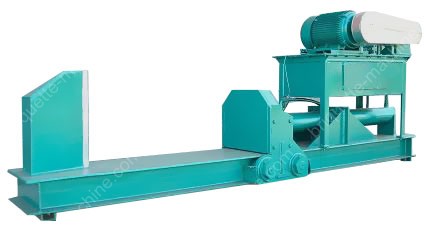

Horizontal Type Log Splitter

Log splitter

Model Dimensions
of worktable (mm)
Max.Log length (mm) Max.Log diameter
(mm)
Power  (KW) Oil cylinder pressure
(Tons)
Overall size
 (mm)
Weight   (kg)
GCWP-800 800x600 800 500 7.5 30 2800*600*1100 1200
GCWP-1000 1000x600 1000 650 11 35 3100*600*1200 1400
GCWP-1200 1200x600 1200 980 15 40 3400*650*1300 1800
GCWP-1500 1500x850 1500 1200 18.5 50 4200*1100*1500 2400

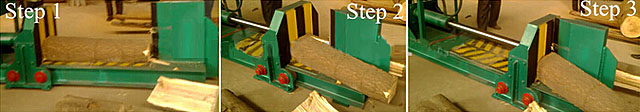

Working Process of The Hydraulic Log Splitting Machine

log splitting machine

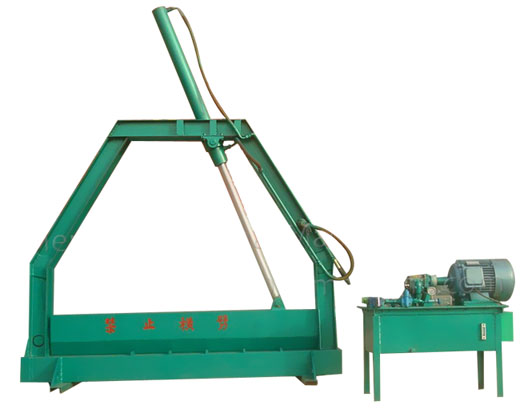

Vertical Type Log Splitter / Cutter

vertical log splitter

Model Dimensions
of worktable (mm)
Max.Log length (mm) Max.Log diameter
(mm)
Power  (KW) Oil cylinder pressure
(Tons)
Overall size
 (mm)
Weight   (kg)
GCZP-800 1850x400 1600 500 7.5 25 2850*400*2300 980
GCZP-1000 2200x600 1600 600 11 30 2850*400*2500 1180
GCZP-1200 2450x500 2000 1000 15 40 3250*500*2800 1400
GCZP-1500 3050x600 2500 1200 18.5 50 3850*500*3000 1700

Wood Log Splitting Final Products

log splitting

Raw Wood Log and Final Products After Splitting
