Make Briquettes from Sawdust and Paraffins

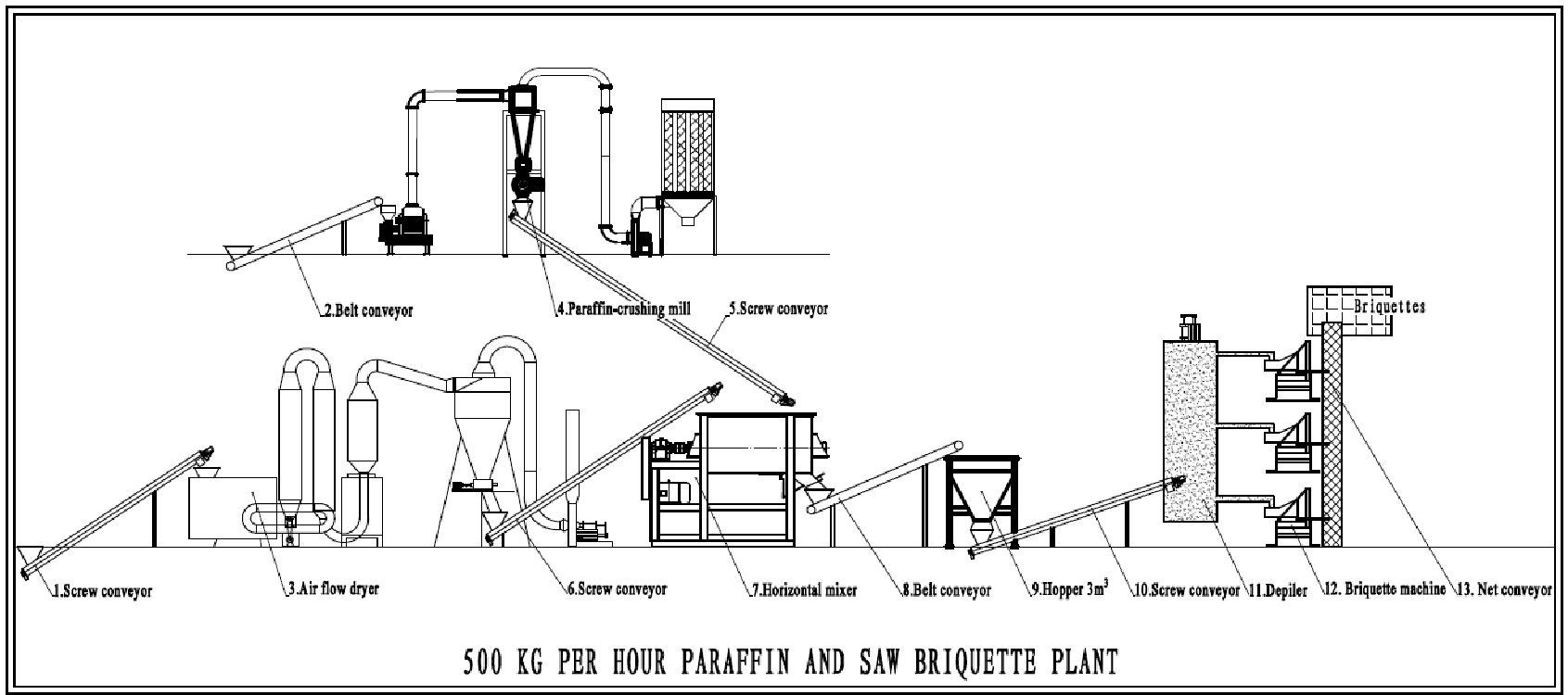

Details of 500kg/h Paraffin and Sawdust Briquette Plant

Air flow drier will dry the varies moisture sawdust to moisture 10%-12%；
Paraffin crusher, and be sure mixing with the sawdust with 1:1；
Go to mixer with 1:1 Paraffin powder and dried sawdust by screw conveyor；
After mixing, the mixed materials will go to Pre-Bin and the deplier will use the blade to deliver the materials in the hopper of the briquette press. And the final briquettes will be delivered by net conveyor for storage.

Paraffin and Sawdust Briquette Plant

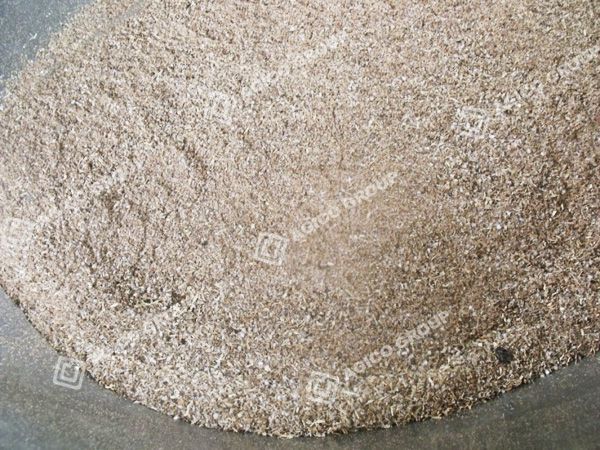

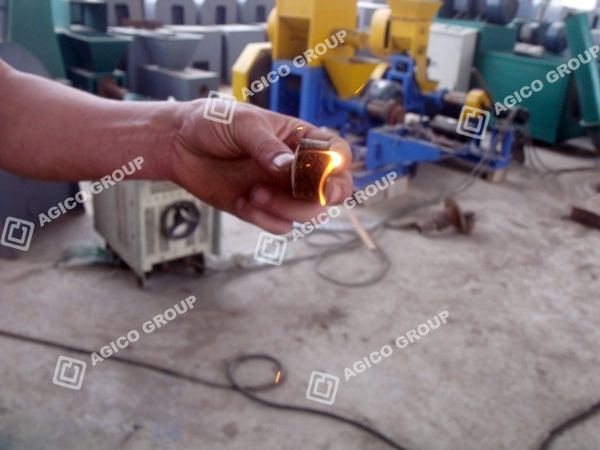

Raw Materials: We mix the sawdust and paraffins with 50% and 50% together and make testing. Attach the pictures for your reference:

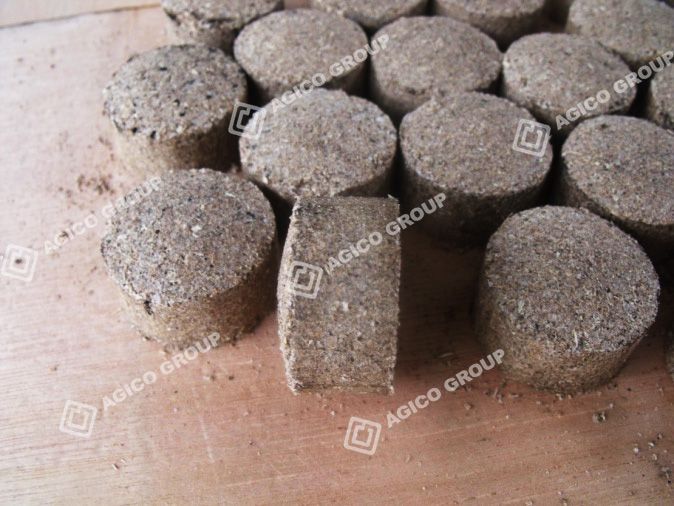

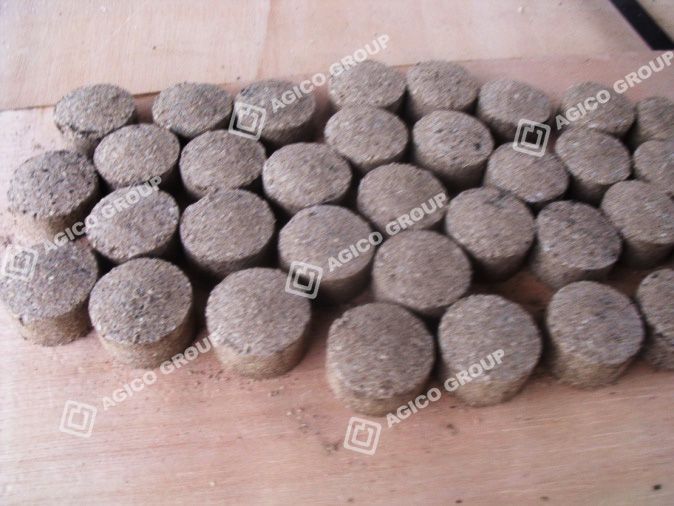

Final Briquettes: Diameter 30mm,thickness is 20mm.

Briquette Machine Description

This machine is automatic hydraulic briquette press; it can compress different kinds of powder material into different sizes and shapes of briquettes. The output briquette is in good density,perfect shape, good appearance. It is widely used in the lines of charcoal dust, medicine making,foods, chemicals, biomass briquetting etc.

The machine has the advantage of saving power consumption and material consumption, higherquality of briquettes, safe operation, easy maintenance and low noise.
Shape of tablets can be changed into cube shape, cuboid shape, circular shape etc after changingmoulds.

TECHNICAL PARAMETER

Model: GC-YPJ
Capacity: 180kg per hour
Compression pressure: 30mpa
12 presses per minute
28pcs per press for Round; 50mm (dia) x 20mm (thickness)
For square also, the size is Diam.50 or 70mm.
LENGHT cannot be more than 25mm.
Machine overall size: L 7m*W 1m * H 1.8m
Weight: 1400KG

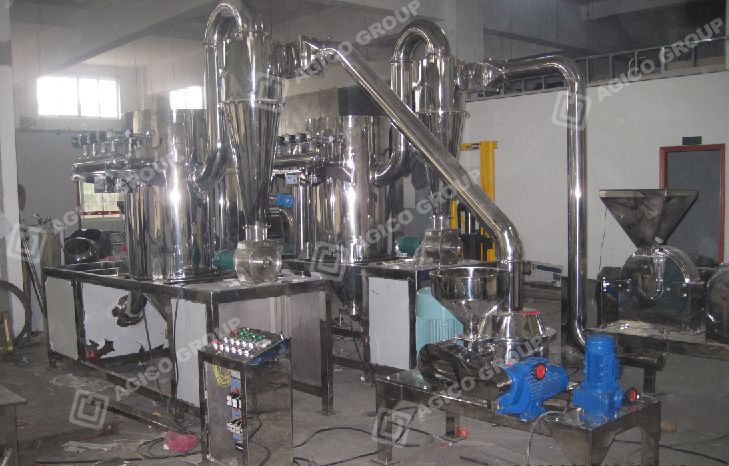

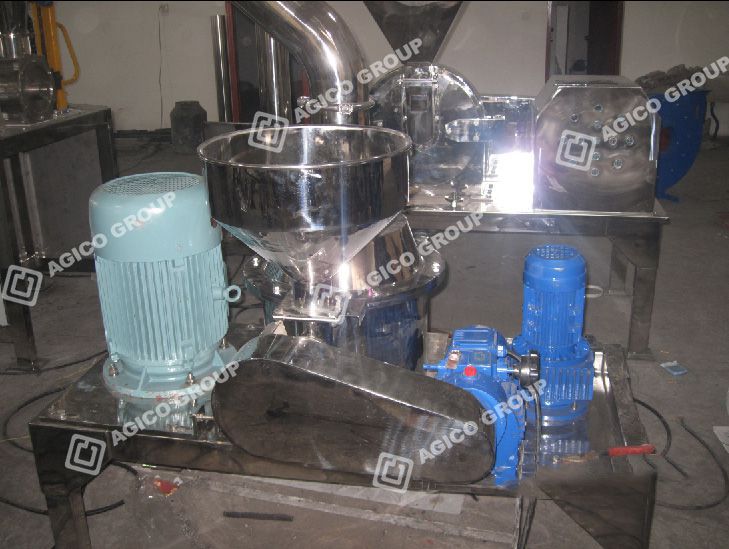

Paraffin-crushing Mill

The paraffin will go to the crushing chamber by cyclone from the hopper, and the paraffin was crushed by the high speed blades and discharging by cyclone and dust collector.

Specification of the Paraffin Crushing Mill

Model	Capacity(kg/h)	Size of input materials (mm)	Size of output materials(mesh)	Total power(kW)	RPM(r/min)	(Outer size) (mm)
WFJ-15	250-300	≤15	30-100	17.5	6000	4200 × 1200 ×2700

Specification of Motor

Feeding motor	Model	Power	Speed ratio	Speed of output	Speed adjustable range
Feeding motor	MB-W04Y-CS	0.37KW	1:05	1400rpm	40-200rpm
Crushing motor	Model	Power		Speed of output
Crushing motor	Y160M1-2	11KW		2930rpm
Grading motor	Model	Power	Speed ratio	Speed of output	Speed adjustable range
Grading motor	MBL07Y-C5	0.75KW	1:05	1400rpm	40-200rpm
Air lock	Model	Power		Speed
Air lock	YS7144-4	0.75KW		40rpm
Centrigugal blower	Model	Power	Speed	Full pressure	Air flow
Centrigugal blower		4KW	2900rpm	4447pa	2062m3/h

Briquette machine can consist a full plant with other equipment like conveyor, wheel mixer,box-type feeder,belt dryer and etc. Pls see the pictures in the following.

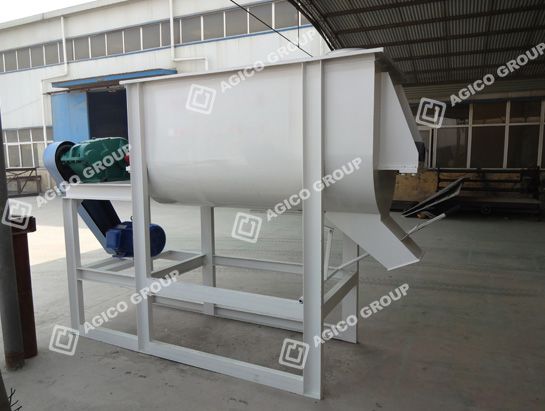

Horizontal Mixer

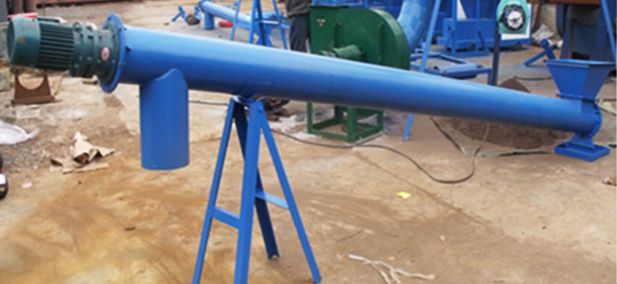

Screw Conveyor

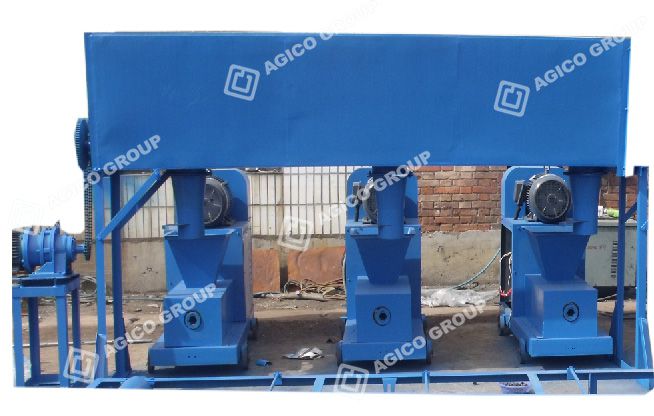

Material Depiler
